Setting Up a Teemi TMSL-55 Bluetooth Scanner to Work with PhotoMatch
The Teemi TMSL-55CR scanner can be used with PhotoMatch. It must be programmed before it will work with PhotoMatch
Teemi TMSL-55CR (1D Barcode/2D QR Code Scanner)
Buy on Amazon
Teemi TMSL-55 Configuration for PhotoMatch
Windows and iPad scan the following barcodes in order.
Wait for the beep before scanning to the next barcode.
1.
Restore all factory defaults.
2. (FOR TMSL-55 WIRELESS BLUETOOTH 2D SCANNERS ONLY)
Scan the BT_ADDR barcode on the bottom of the base of scanner.
Wait for the solid blue light to appear on the front of the base.
Wait for the flashing blue light to appear on the top of the scanner.
3.
Set custom prefix.
4.
5.
6.
7.
[9 9 2 3] = pound sign (#)
8.
Save custom prefix.
9.
Set custom suffix.
10.
11.
12.
13.
[9 9 2 4] = dollar sign ($)
14.
Save custom suffix.
If using with a Windows device your are finished.
If using with an iPad proceed to the next steps.

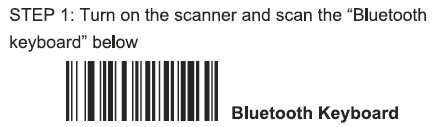

Only scan the following barcodes if using an iPad
STEP 5: OPEN PhotoMatch and log into an event, print some QR codes to test the scanner.

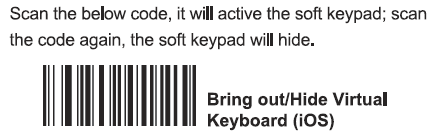

Once you are logged into an event, click on the search field. If your keyboard does not appear, scan the next barcode.
Note: if the keyboard does not appear, scan the barcode again until you see the keyboard
